Emenda Split Bolt

An emenda split bolt is a reliable and widely used connector for joining two or more bare or insulated conductors in both residential and commercial electrical installations.

What Is an Emenda Split Bolt and How Does It Work

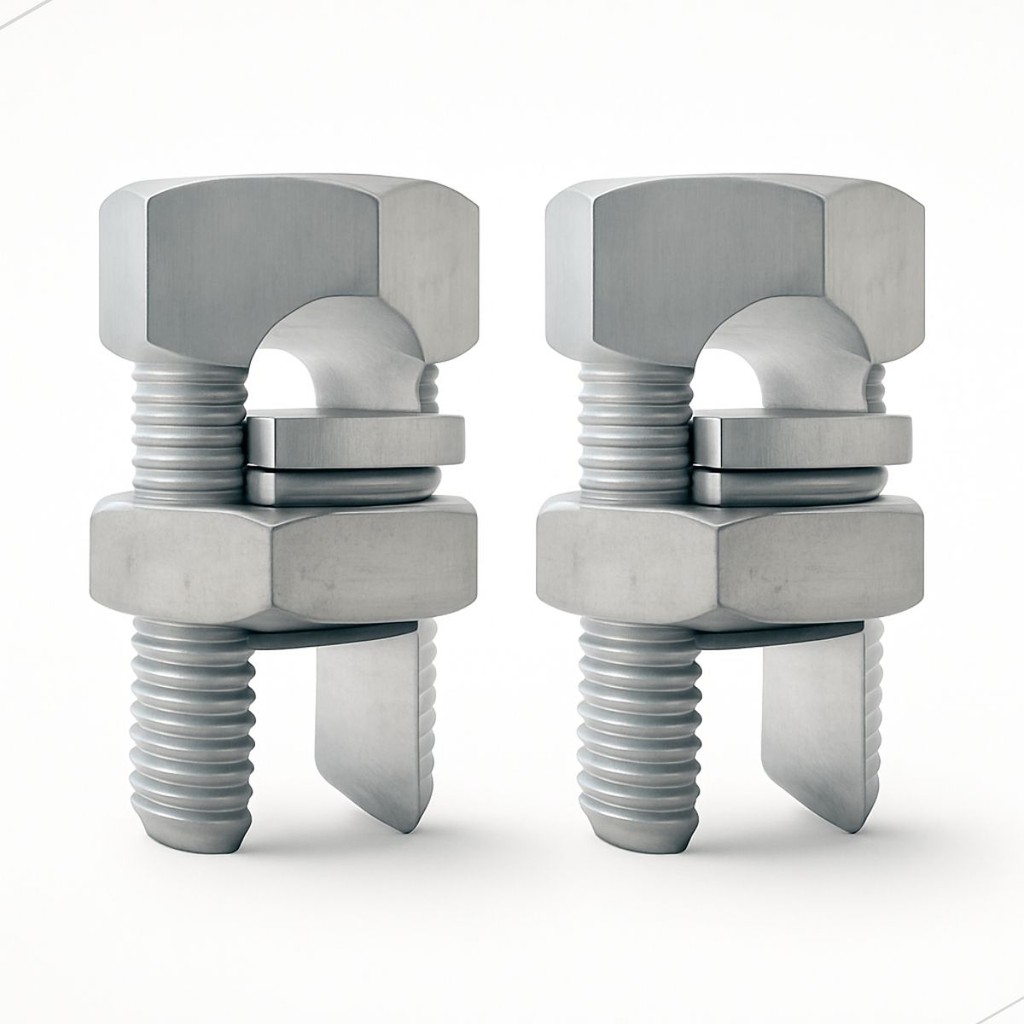

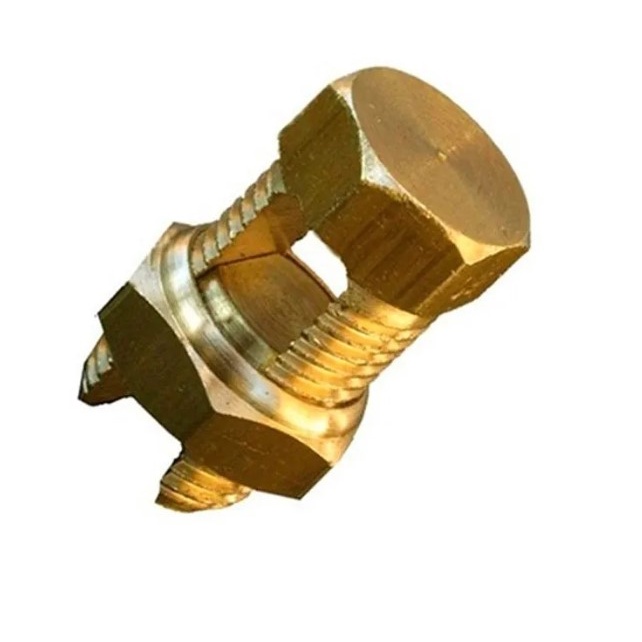

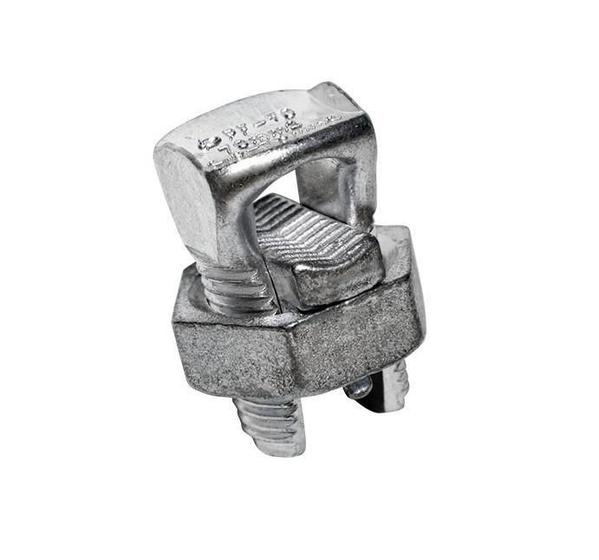

An emenda split bolt consists of a metal bolt with a longitudinal split and a flat washer that compresses the conductors when the nut is tightened. This design creates a strong mechanical and electrical connection by deforming the conductor slightly, increasing surface contact and reducing resistance.

The simplicity of this connector makes it popular for tasks such as extending wiring, connecting cables in junction boxes, or branching circuits in a controlled manner. Because the bolt is exposed, it is easy to install and inspect, which helps electricians verify that the connection is properly tightened.

Advantages of Using Split Bolt Connectors

One of the main advantages of an emenda split bolt is its cost-effectiveness compared to crimping tools or terminal blocks. It requires only a standard wrench or pliers to secure the connection, making it accessible for both professionals and DIY enthusiasts.

• No specialized crimping tools are required.
• Good for temporary or permanent installations.
• Can handle a wide range of conductor sizes when paired with the correct bolt and washer.

Additionally, because the connection is visible, it is straightforward to check for proper torque and ensure that no strands are protruding, which can reduce the risk of loose connections or overheating over time.

Proper Installation Steps for Safety and Reliability

To achieve a safe and durable joint with an emenda split bolt, it is essential to follow a careful installation procedure. Begin by stripping the insulation to the correct length, ensuring that all strands are inserted neatly into the connector without excessive protrusion.

Next, place the flat washer over the bolt, insert the conductors, and tighten the nut evenly. It is important to use the appropriate wrench size and apply firm pressure while avoiding over-tightening, which can damage the conductor or strip the threads.

Key Tips for a Secure Connection

• Trim excess strands to prevent them from touching other conductors.
• Use a torque wrench if precise specifications are required.
• Protect the joint with electrical tape or a non-metallic enclosure if exposed to moisture or abrasion.

Following these steps helps maintain both mechanical strength and electrical conductivity, which are critical for long-term performance.

Common Applications in Residential and Commercial Settings

You will often find an emenda split bolt in residential service panels, where homeowners extend wiring for additional outlets or lighting circuits. Its straightforward design is also suitable for farm installations, workshops, and small commercial projects where budget and simplicity are priorities.

In commercial environments, these connectors may be used in conjunction with junction boxes to create branch circuits or to repair damaged sections without replacing entire runs. When used with proper insulation methods, they comply with many local electrical codes for permanent installations.

Safety Considerations and Best Practices

Safety should always come first when working with any type of electrical joint, and an emenda split bolt is no exception. Before beginning any work, turn off the power at the main breaker and verify that the conductors are de-energized using a reliable tester.

Wearing appropriate personal protective equipment, such as insulated gloves and safety glasses, adds an extra layer of protection. Ensuring that the joint is clean, dry, and properly insulated minimizes the risk of short circuits, arcing, or accidental contact.

Comparison With Other Connection Methods

Compared to wire nuts, an emenda split bolt can handle larger gauge conductors and often results in a more compact joint inside a box. Unlike crimped lugs, it does not require a crimper, which can be advantageous when tools are limited.

However, it is generally less weather-resistant than sealed connectors and may require additional protection in damp locations. Understanding these differences helps electricians and homeowners choose the right solution for each specific application.

In conclusion, the emenda split bolt remains a versatile and practical option for connecting conductors in a wide range of electrical projects. When installed correctly and protected appropriately, it offers a cost-effective, reliable, and code-compliant solution for both professionals and hobbyists.
